Floor standing air conditioner
Take care of your soft conditions and sweet protection
Weight
Inventory
隐藏域元素占位
- Feature
- Specification
-
AUTO Restart
Dehumidification
Long distance air flow
Commercial and residential
High efficiency compressor
Bigger size, bigger capacity
During any kind of enviroment, our DC Inverter Floor Standing AC will take care of your cooling demands, making you enjoy a comfortable and hassle-free living. Suitable for variety of scenes, restaurants, halls, shops, offices and conference rooms.
20-meter long-distance air flow
Tailored large-diameter centrigugal fan brings strong air supply of pleasant wind, with delivery distance of over 20 meters. Long-distance and large-angle air supply in all directions, up & down left & right, offering users a comfortable feeling.

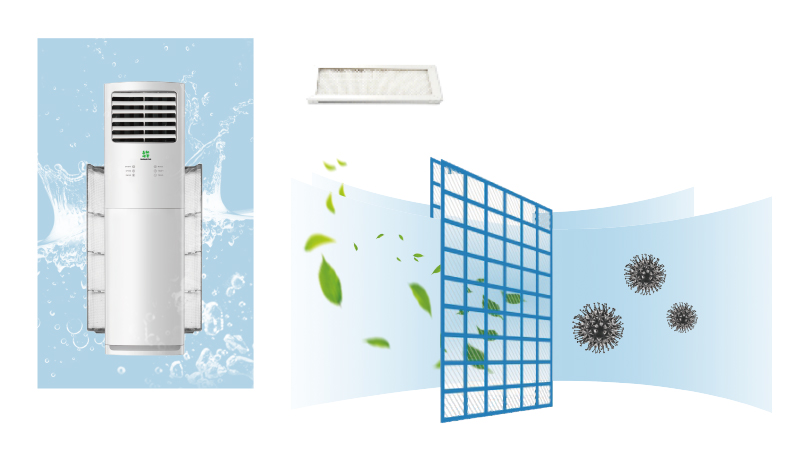

High density health filter (H11)
The high density health filter can resist 95% of dust and is easy to disassemble. lt can fully absorb harmful gases like formaldehyde, benzene, toluene, xylene and smoke smell, etc.
UVC lamps
The floor standing unit is equiped with two UVC lamps. The deep ultraviolet technology of medical-grade UVC lamps ensure sterilization rate of 99.3%. The anti-escherichia coli micro activity is over 99.9%, providing fresh and heathy air.
-

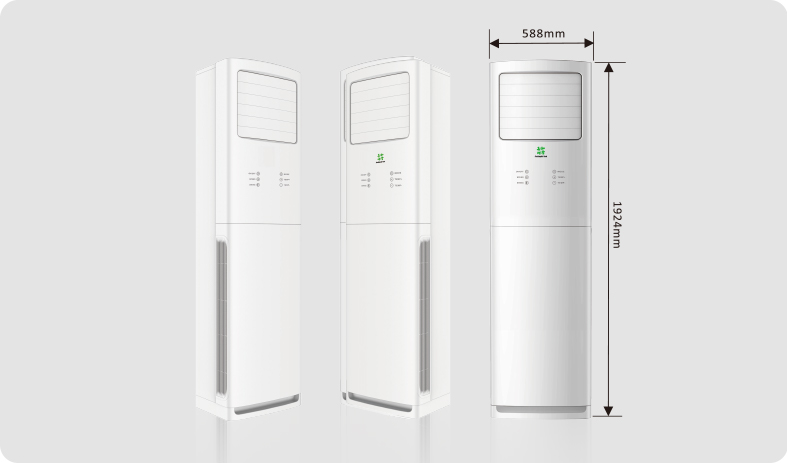

Model Name PAT-36FSIN PAT-55FSIN PAT-60FS-T3 Type Cooling only Cooling only Cooling only Power supply V/Ph/Hz 230-1-50/60 230-1-50/60 230-1-60 Norminal Capacity Btu/h 36,000(10,900~39,000) 55,000(15,500-58,000) 52,000 Norminal Capacity kW 10.5(3.2~11.5) 16.1(4.5~17.0) 15 Norminal Rower W 3,800(980~4100) 5,600(1,450~6,700) 4,100 Norminal Current A 16.6(4.9-17.9) 24.4(6.4-29.2) 18 Norminal Capacity T3 Btu/h / 43,000 Norminal Capacity T3 kW 12.6 Norminal Power Input T3 W 5,000 Norminal current T3 A 22 Maximum Power input W 4850 7370 6,500 Maximum Current A 21 31.9 29 Compressor Maker GMCC GMCC LG Airflow m3/h 2400 Indoor Dimension Net 588x392x1924 Gross 685x490x2050 Outdoor Dimension Net 940x370x780 938x368x1336 Gross 1065x495x880 1080x480x1395/1100x485x1495(Add base) Indoor Weight Net 53 57 Gross 62.5 66.7 67 Outdoor Weight Net 61 95 105 Gross 69 113.5 125 Piping connection Gas/Liquid(mm) 15.88/9.52 19/9.52 19/9.52 Max. length(m) 25 30 Min. length(m) 3 Max height difference(m) 15
