Pego Series Inverter Swimming Pool Heat Pump
Urban luxury by means of technology
Weight
Inventory
隐藏域元素占位
- Feature
- Specification
-

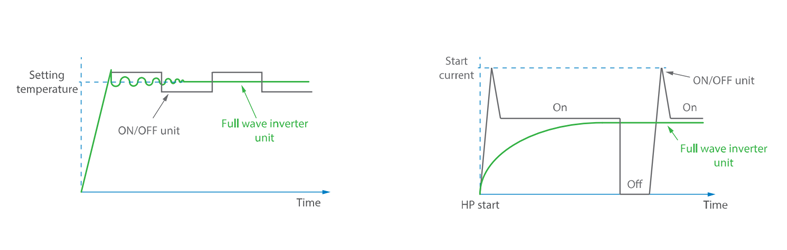

Inverter technology
Stable water temperature
Precise control of the compressor speed ensures that the water temperature remains within a small fuctuation around the set temperature.
Quick start-up
Inverter system outputs power according to the energy demand, it starts quickly by adjusting motor rotary frequency, and reaches a comfortable state in a short time.
Less frequesnt start/stop
The ability to vary compressor speed means fewer start/stop cycles for the compressor, extending compressor life.
All-season fun

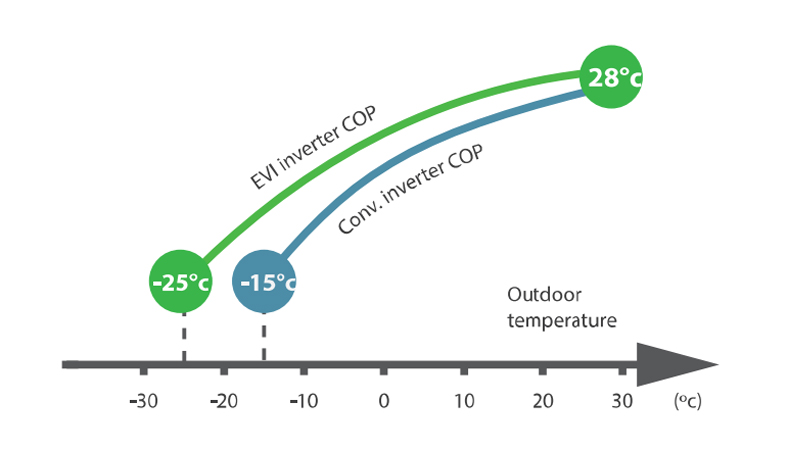

Unique EVl technology by means of the Flash Tank system allowing to offer the best performances even in the most unfavourable conditions from ambient -25oC to 43oC, making it fit
for all-year-round swim.
High efhciency
Specially developed with the most cutting-edge technology and modern design to meet stringent requirements for effciency PAT EVl inverter heat pump is featured with top energy rating COP up to 15, the unit is currently most energy effcient and can greatly reduce energy bills for customers.

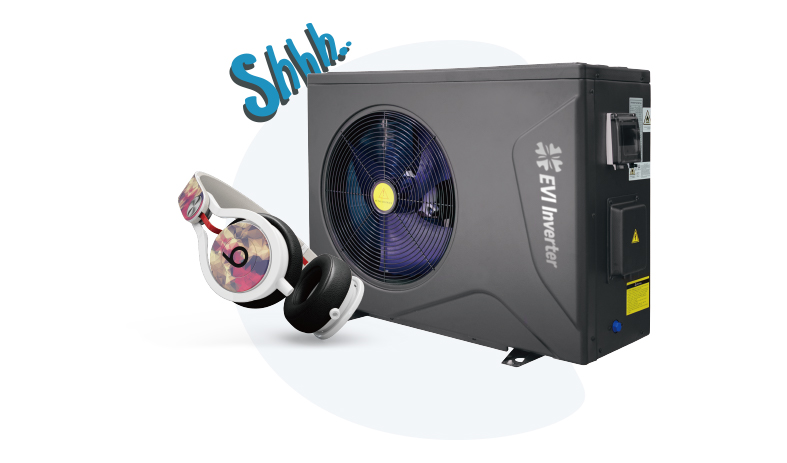

Quiet operation
Extremely quiet operation, compressor and fan work at low speed when maintaining the temperature, cut the noise level to around 38 dB(A) at midnight.
-
Model Pego-70 Pego-90 Pego-125 Pego-170 Condintion 1:(A26°C，RH70% / W26°C/28°C) Heating capacity kW 1.5~7.21 5.71-23.00 6.20-25.15 4.09~16.53 Power input kW 0.12-1.22 0.14-1.58 0.25-2.45 0.31-3.06 COP 13.55~5.65 13.27~5.63 13.16~5.54 13.05~5.4 Condintion 2:(A15°C，RH70% / W26°C/28°C) Heating capacity kW 1.2~4.72 1.55~6.43 2.72~10.26 3.32~12.44 Power input kW 0.17~1.06 0.22~1.46 0.40~2.29 0.50~2.83 COP 7.21~4.50 7.12~4.45 6.84~4.41 6.70~4.37 Condintion 3:(A7°C，RH70% / W26°C/28°C) Cooling capacity kW 1.6~3.6 1.75~4.46 3.04-7.48 3.71~9.12 Power input kW 0.24~0.88 0.26-1.10 0.46~1.88 0.56~2.39 EER 4.08-6.73 4.05~6.78 3.97-6.68 3.82~6.66 Power supply V-/Ph/Hz 230/1/50 Water flow m3/h 2~4 3~5 5~7 6~8 Running temperature range -15°℃ ~43°C Advised pool size (isothermal cover @ night) m3 15-30 20-40 30-60 40-70 R32 refrigerant kg 0.3 0.4 0.55 0.6 CO2 equivalent T 0.2 0.3 0.4 0.4 Water side heat -exchanger Titanium heat-exchanger with PvC casing Sound pressure level at 1m dB(A) 34~42.1 35.1~43.2 36.2~44.3 37.1~45.4 Controller LCD, built-in Wifi module Unit/Packing dimension (LxDxH) mm 710x333x515 / 810x360x645 862x365x660 / 950x385x785 Unit/Packing weight kg 33/38 36/43 42/47 46/53 Loading quantity 40HQ pcs 261 261 144 144 Model Pego-210 Pego-245 Pego-170-T Pego-210-T Pego-245-T Condintion 1:(A26°C，RH70% / W26°C/28°C) Heating capacity kW 1.5~7.21 5.71-23.00 6.20-25.15 4.09~16.53 5.89~24.55 Power input kW 0.12-1.22 0.14-1.58 0.25-2.45 0.31-3.06 0.45-4.40 COP 13.55~5.65 13.27~5.63 13.16~5.54 13.05~5.4 13.07~5.58 Condintion 2:(A15°C，RH70% / W26°C/28°C) Heating capacity kW 1.2~4.72 1.55~6.43 2.72~10.26 3.32~12.44 4.89~17.81 Power input kW 0.17~1.06 0.22~1.46 0.40~2.29 0.50~2.83 0.71~3.98 COP 7.21~4.50 7.12~4.45 6.84~4.41 6.70~4.37 6.88~4.42 Condintion 3:(A7°C，RH70% / W26°C/28°C) Cooling capacity kW 1.6~3.6 1.75~4.46 3.04-7.48 3.71~9.12 5.51-13.21 Power input kW 0.24~0.88 0.26-1.10 0.46~1.88 0.56~2.39 0.85~3.53 EER 4.08-6.73 4.05~6.78 3.97-6.68 3.82~6.66 3.74~6.50 Power supply V-/Ph/Hz 230/1/50 380/3/50 Water flow m3/h 2~4 3~5 5~7 6~8 8~11 Running temperature range -15°℃ ~43°C Advised pool size (isothermal cover @ night) m3 60~90 80~110 40~70 60~90 80~110 R32 refrigerant kg 0.7 1.0 0.6 0.7 1.0 CO2 equivalent T 0.5 0.7 0.4 0.5 0.7 Water side heat -exchanger Titanium heat-exchanger with PvC casing Sound pressure level at 1m dB(A) 38.3~48.7 41.7~50.9 37.1~45.4 38.3~48.7 41.7~50.9 Controller LCD, built-in Wifi module Unit/Packing dimension (LxDxH) mm 990x395x660 / 1075x410x785 862x365x660
950x385x785
990x395x660 / 1075x410x785 Unit/Packing weight kg 55/62 62/69 47/54 56/63 64/71 Loading quantity 40HQ pcs 111 111 144 111 111
