Number:

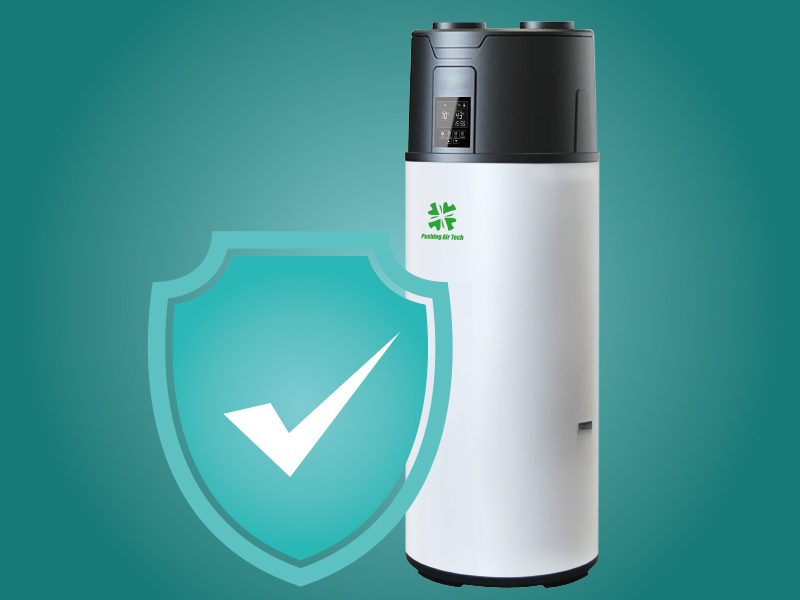

All-in-one DHW Heat pump Floor-standing Type

Plug and play product, up to 70% saving compare to traditional water heater.

Product Categories: All-in-one Heat Pump
· Environment-friendly and high efficiency · Reliable inner tank · Flexible installations

Weight

Quantity
-
+

Inventory

Add to Cart
Buy Now

隐藏域元素占位

Product Message

Return to List

  • Feature
  • Specification

  • A+7℃

    70℃ LWT

    R290

    Solar PV

    Environment-friendly and high efficiency

    • 150g R290 charging volume, free indoor installation.
    • Micro-channel heat exchanger wrapped around the inner tank.
    • BLDC fan motor, higher efficiency and lower noise.

    Reliable inner tank

    • Water tank size: 80-500L.
    • Enamel tank and inox (duplex 2205) tank are available.
    • Optional electric anode.

    Flexible installations

    • Top-discharge design suitable for various installations.
    • PV solar control and solar coil are optional
    • WiFi and Modbus connection are optional.
  • Model PT-AC-200/N7 PT-AC-270/N7 PT-AC-300/N7
    Power supply V~/Ph/Hz 220-240/1/50
    Nominal tank volume L 200 270 300
    Nominal Heating Capacity kW 1.26 1.28 1.22
    COP dhw test in 7℃ heat source W/W 3.15 3.10 3.06
    Enery class （7/6℃）   A+ A+ A+
    Rated Current A 3.46 3.51 3.45
    EBH (Electric backup heater) kW 1.5
    Air flow m3/H 340
    Max.leaving water temperature(heat pump only) ℃ 70
    Working temperature range ℃ -10~43
    Sound pressure level dB(A) 48 49 49
    Refrigerant type g R290 /150g
    inner tank material   Duplex 2205/Enamel
    Inner tank outside diameter mm ɸ500 ɸ500 ɸ540
    Condenser coil   Micro channel
    Corrosion proof   Magnesium anode/E-Titianium anode
    Net Dimensions mm ɸ600x1705 ɸ600x1880 ɸ640x1860
    Loading quantity of 40HQ   54 54 51
