Number:
All-in-one DHW Heat pump Wall-hung Type
Perfect solution for apartment with low shipping and installation cost
Weight
Inventory
隐藏域元素占位
- Feature
- Specification
-
A+7℃
70℃ LWT
R290
Solar PV

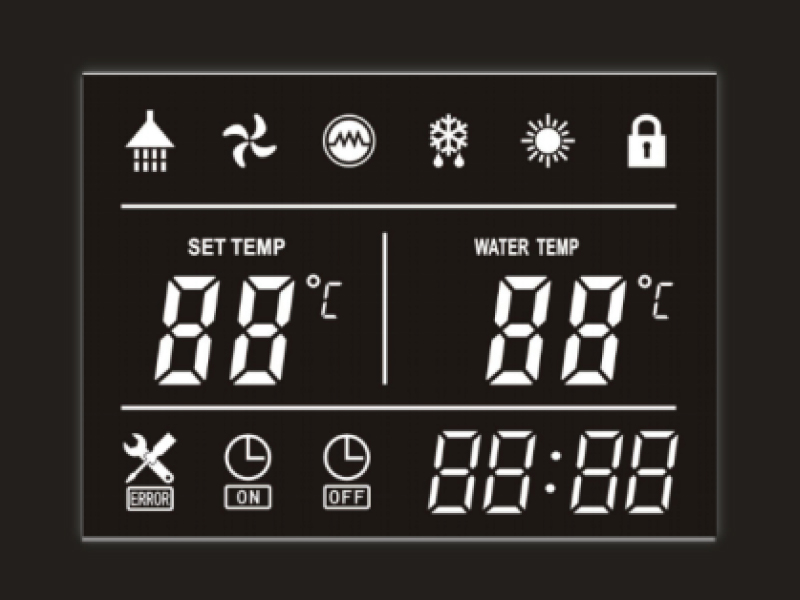

Intelligent display
· Stylish design, simple and exquisite.
Competitive shipping cost
· Loading quantity/40HQ: 152pcs.
Quality

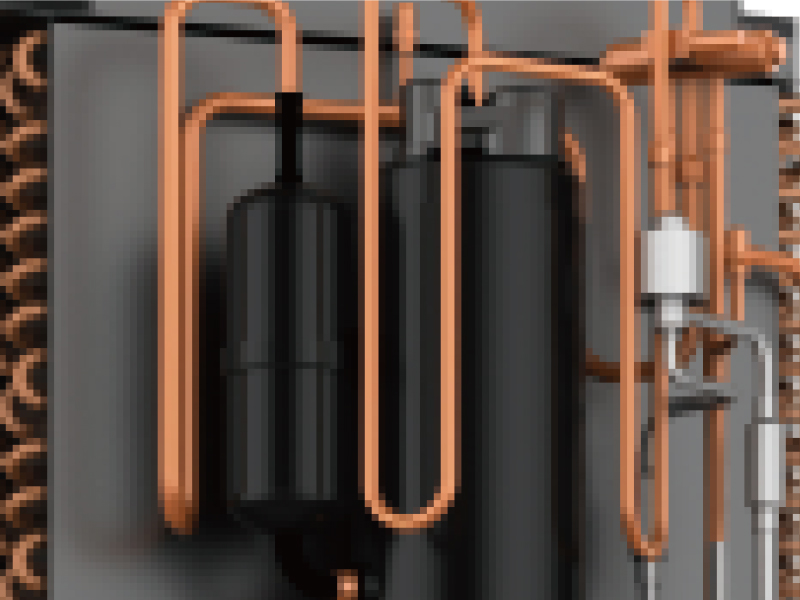

· Brand compressor, tailor-made for heat pump. high efficiency and long lifespan.
-
Model PT-AC-80/N7 PT-AC-100/N7 PT-AC-150/N7 Power supply V~/Ph/Hz 220-240/1/50 Nominal tank volume L 80 100 150 Nominal Heating Capacity kW 1.02 1.07 1.22 COP dhw W/W 3.08 3.2 3.78 Energy Class(7/6°C) A+ Rated Current A 2.18 + 6.8 (e-heater) EBH (Electric backup heater) kW 1.5 Fan motor (Type/W/RPM) DC motor/15/880 Air flow m3/H 240 Max.leaving water temperature(heat pump only) ℃ 70 Working ambient temperature ℃ -10~43 Sound pressure level dB(A) 54 Refrigerant type R290 Refrigerant charge g 142 150 150 inner tank material Enamel Material of heat pump coil Micro channel Net Dimensions mm ɸ520x1070 ɸ520x1230 ɸ520x1620 Loading quantity of 40HQ 152 152 80 Note:
1.(*) Capacities and power inputs are based on the following conditions:
2. Heating: Ambient temperature 20°C/15°C, Water temperature from 15°C to 55°C
3.(**)Based on ERP(EN16147)7°C heat source.
