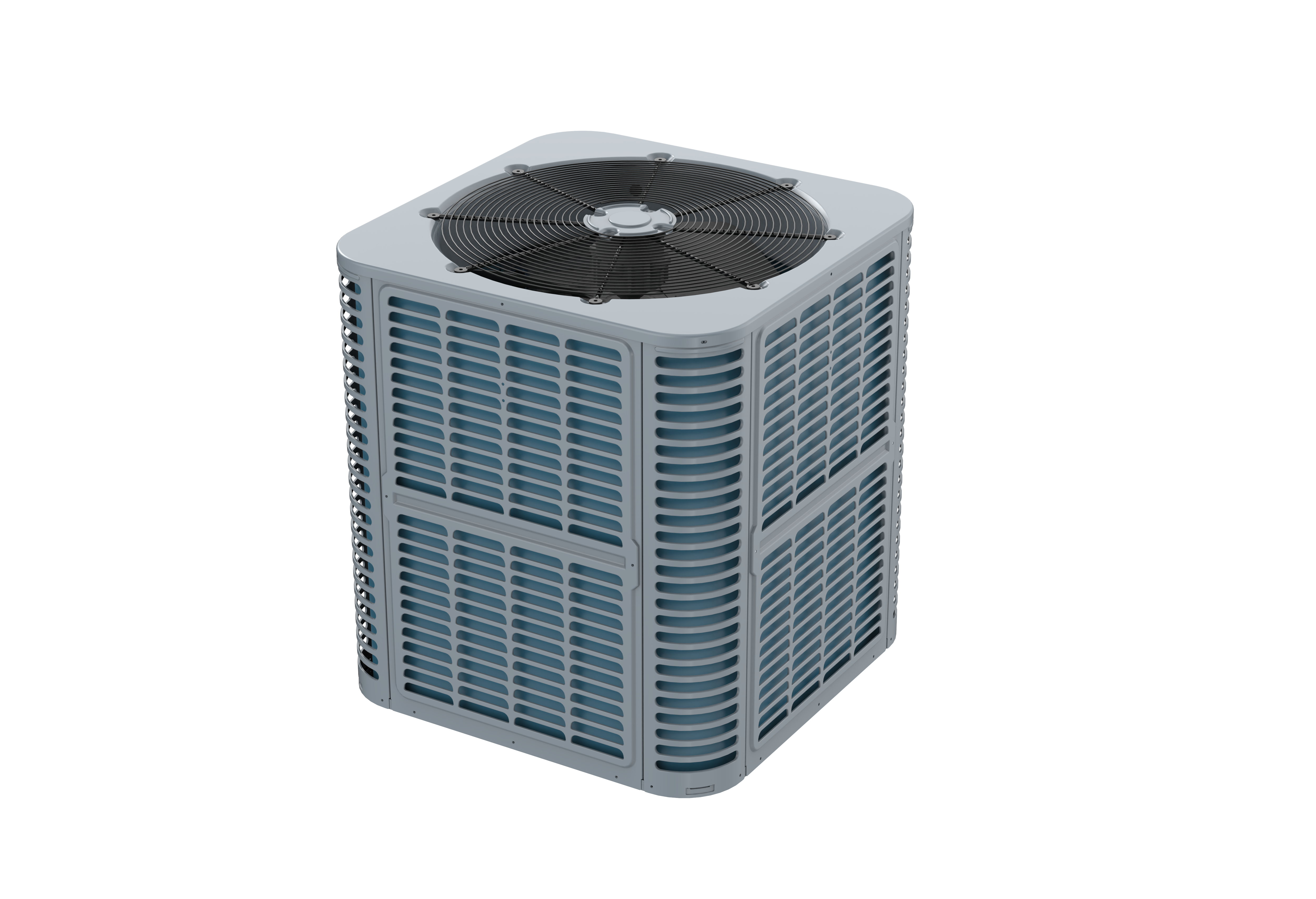

18 SEER2 INVERTER R454B TOP DISCHARGE+ AIR HANDLER UNIT
The ideal product for both residential and commercial buildings
Product Categories:
Unitary
· Up to 20 SEER2
· Full DC inverter
· Refrigerant-cool PCB
· 24V control
· 2/3T and 4/5T convertible by dip switch
· Quiet operation, 9 fan speed outdoor unit
Weight
Quantity
-
+
Inventory
隐藏域元素占位
- Feature
- Specification
-
Features- Up to 20 SEER2
- Fully Inverter, automatically adjust speed between 35%~110%
- Compact size condensing unit
- 24VAC thermostat wiring
- Quiet operation, 9 fan speed outdoor unit
- Easy trouble shooting, error code display
- Wide operation temp. range Support low ambient (down to 5℉）cooling
- Cold climate heat pump:
@17℉≥80% nominal heating capacity @47℉
@5 ℉≥70% nominal heating capacity @47℉， COP ≥2.0; - Indoor unit with 2-stage ECM motor & TXV
- Optional electric heat kit
- Built-in filter rack
- Premium copper coil to prevent Ant Nest Corrosion
- Multi-position installation

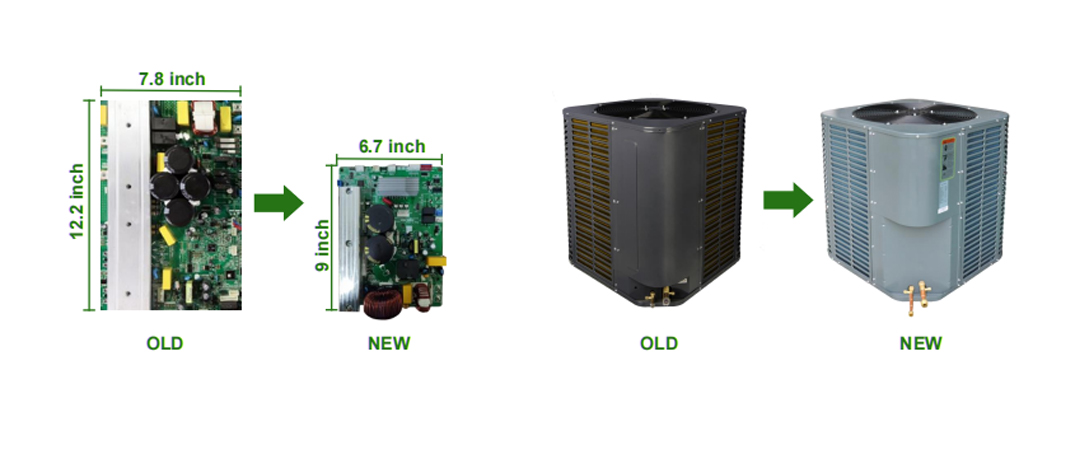

Easy maintenance
-
More space for pipeline connection；
Small PCBA, easy and lower cost maintenance;
Auto-adaptive Outdoor Fan Speed
Quiet Operation 9-level fan speed
Wide operation range
@17F ≥ 80% nominal heating capacity @47F
@5F ≥ 70% nominal heating capacity @47F, COP ≥ 2.0
-
ODU SPEC
Model 24K 36K 48K 60K Power supply V~/Ph/Hz 230V/1N/60HZ Cooling Capacity Btu/h 24000 34000 47500 55000 EER2 Btu/h.W 13,3 11,7 11,3 10 SEER2 Btu/h.W 20 18.6 17.5 17 Heating CapacityBtu/h 24000 34200 48000 57000 Btu/h(17℉) 19200 24000 40000 42000 Btu/h(5℉) 20000 24000 34200 42500 5℉ COP 2.1 2.1 2.1 2 HSPF2 Btu/h.W 9.4 9 9 8.6 Compressor Brand GMCC R454B DC Inverter Type Rotary Outdoor fan motor Type DC Outdoor coil Number of row 2 Fin material Hydrophilic Aluminum Fin Tube outside diamete in Copper Ф 0.276 Outdoor fan speed rpm 1100 1100 1100 1100 Outdoor sound power level (Max) dB(A) 76 79 76 79 Unit (W*H*D) in 29-1/8×25×29-1/8 29-1/8×32-7/8×29-1/8 Temp. Range Cooling ℉ 5—124 Heating ℉ -4Refrigerant Type R454BRefrigerant pipe Liquid side in Ф3/8Ф3/8 Gas side in Ф3/4 Ф7/8 Design pressure Mpa 4.0/1.2 Max. pressure Mpa 4.2 Container Load per 20GP/40HQ W/O Pallet 72/18048/135IDU SPEC
Model 24K 36K 48K 60K Power supply V~/Ph/Hz 230V/1N/60HZ Indoor external static pressure Pa 125 Indoor coil Number of row Btu/h.W 4(row)×2(piece) 4(row)×2(piece) Tube pitch(a) x row pitch(b) Btu/h.W Copper 0.53x0.41 in Fin material Btu/h Hydrophilic Aluminum Fin Indoor fan motor Type ECM Optional E-Heater 5/7.5/10/15/20 kW Indoor CFM 700 1050 1670 1850 Indoor air flow Unit (W*H*D) in 19-2/3*45-3/4*22 22×53-1/8×24-1/2 Dimension Packing (W*H*D) in 22-5/6*47-5/8*25-3/5 25-1/5×54-3/4×28 Refrigerant pipe
Outdoor fan motor TypeLiquid side in Ф3/8 Gas side in Ф3/4 Ф7/8 Container Load per 20GP/40HQ W/O Pallet 30/150 27/80
