Product
Number:
Mini Pool Heater
Affordable choice for small pools
Product Categories:
Swimming Pool Heat pump
· Suitable for pools up to 15m³ of water
· Simple plug & play
· Power cable with safety RCD
· 32/38mm flexible water connections for hose
· Titanium Heat Exchanger
· Available in 3/4/5kW
Weight
Quantity
-
+
Inventory
隐藏域元素占位
- Feature
- Specification
-
Garden gadget for above-ground Pool
- Suitable for pools up to 15m³ of water
- High efficiency compressor in R32
- Titanium in PVC heat exchanger
- Simple plug & play
- 5-meter power cable, safety RCD
- 32/38mm water connections for hose
- Easy to install, no bypass required

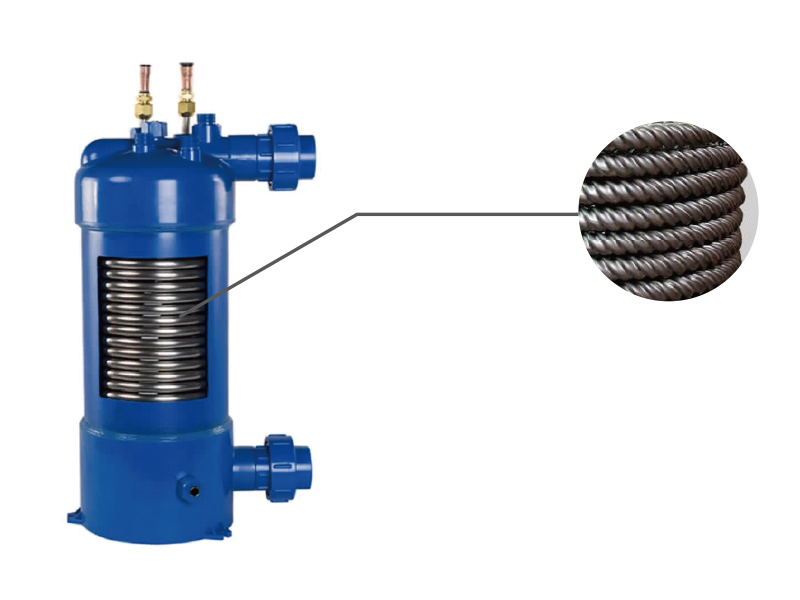

Twisted Titanium Heat Exchanger in PVC

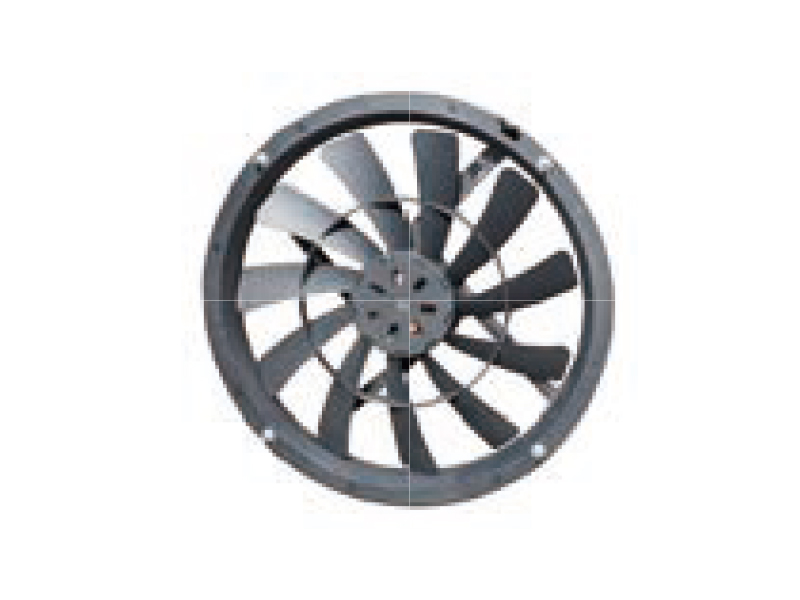

BLDC motor

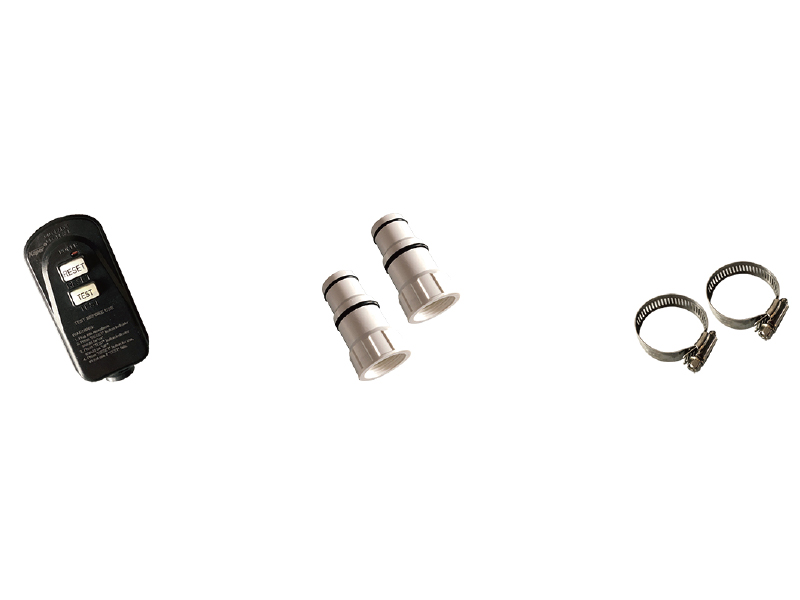

Accessories: RCD plug, 32/38mm hose connector, stainless steel hose clamp

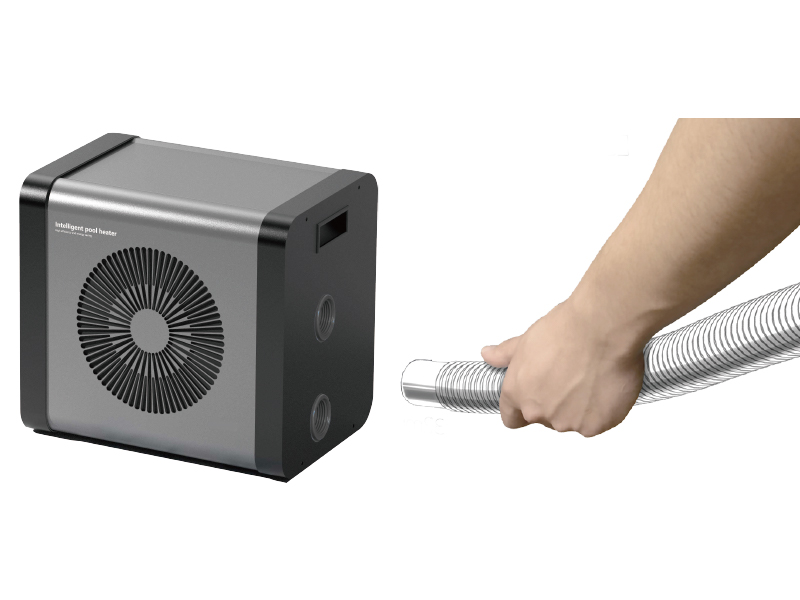

Easy Installation
-
Model MINI30B1+ MINI40B1+ MINI50B1+ MINI30A1 MINI40A1 MINI50A1 Power supply V-/Ph/Hz 220-240/1/50 Function Heating & Cooling Heating only Condintion 1:(A26°C, RH70%/ W26℃/28°C) Heating capacity kW 3.00 4.00 5.00 3.00 4.00 5.00 Power input kW 0.55 0.76 0.94 0.55 0.76 0.94 COP 5.41 5.38 5.33 5.41 5.38 5.33 Condintion 2:(A15°C, RH70% / W26°C128℃) Heating capacity kW 2.42 3.27 4.26 2.42 3.27 4.26 Power input kW 0.51 0.71 0.89 0.51 0.71 0.89 COP 4.66 4.55 4.41 4.66 4.55 4.41 Condintion 3:(A7°C, RH70% / W26℃C128°C) Capacity kW 1.94 2.61 3.42 / / / Rated input kW 0.57 0.77 1.07 / / / COP 3.41 3.36 3.26 / / / Running temperature range 7℃-43℃ Refrigerant Type R32 Factory charged kg 0.26 0.31 0.40 0.23 0.28 0.28 GWP value 675 CO2 equiv alent Ton 0.155 0.209 0.40 0.175 0.189 0.270 Air side heat-exchanger Type Hydrophilic aluminum & Inner groove copper tube Fan motor Fan type Axial Motor type Brushless DC motor Water side heat-exchanger Type Vertical type spiral titanium tube in PVC Casing Type Galvanized steel Power cable Rubber cable (Plug & play) Sound pressure level @1m dB(A) 42 44 45 42 44 45 Water pipe connection Inlet / Outlet mm Ф32/Ф38 Controller LED digital display Dimension (LxDxH) Unit mm 396x286x363 396x286x363 396x286x433 396x286x363 396x286x363 396x286x433 Weight Net kg 20 22 24 20 22 24
