North American Pool Heater
EVI technology conquers all climates
Weight
Inventory
隐藏域元素占位
- Feature
- Specification
-
EVl technology conquers all climatesThe EVl compressor allows the gas to be re-injected into the compressor in an optimal way, achieving higher temperatures in low ambient. The main advantages of this technology are:
- lmprovement of performance and output water temperature.
- lmprovement of the seasonal performance.
- Higher utilization of the heating capacity of the system.
The EVl Inverter heat pump can reach temperatures of over 60°C with no additional electrical support, even at the most extreme temperatures.
Inverter technology
Stable water temperature
Precise control of the compressor speed ensures that the water temperature remains within a small fuctuation around the set temperature.
Quick start-up
Inverter system outputs power according to the energy demand, it starts quickly by adjusting motor rotary frequency, and reaches a comfortable state in a short time.
Less frequesnt start/stop
The ability to vary compressor speed means fewer start/stop cycles for the compressor, extending compressor life.

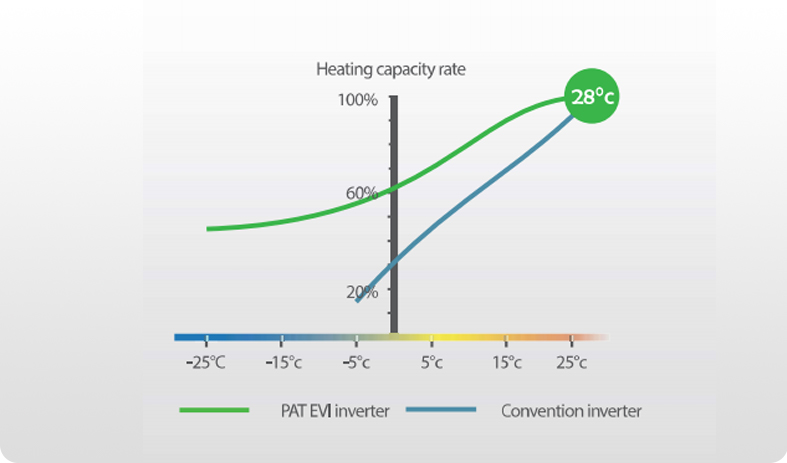

All-season fun
Unique EVl technology by means of the Flash Tank system allowing to offer the best performances even in the most unfavourable conditions from ambient -25oC to 43oC, making it fit
for all-year-round swim.
High efhciency
Specially developed with the most cutting-edge technology and modern design to meet stringent requirements for effciency PAT EVl inverter heat pump is featured with top energy rating COP up to 15, the unit is currently most energy effcient and can greatly reduce energy bills for customers.

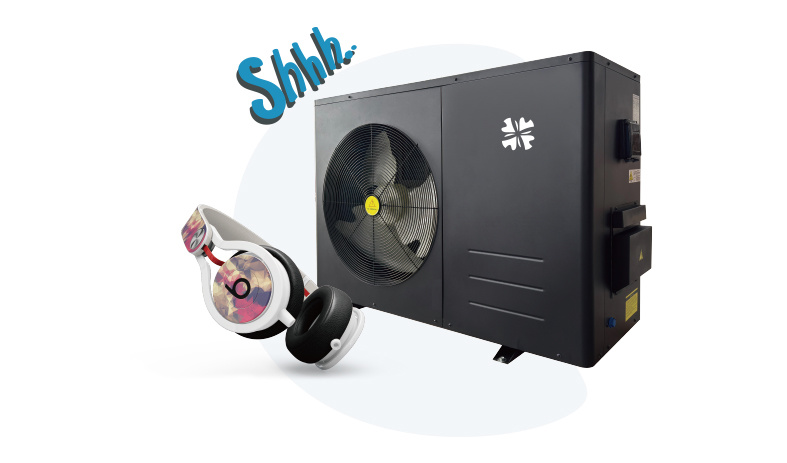

Quiet operation
Extremely quiet operation, compressor and fan work at low speed when maintaining the temperature, cut the noise level to around 38 dB(A) at midnight.
-
Model WA-07 WA-09 WA-12 WA-14 WA-17 Power supply 220-240VAC/1Ph>60Hz Condintion 1: (A80°F, RH80% / W80°F) Heating capacity Btu/h 24,230 30,708 40,940 47,770 58,000 kW 7.10 9.00 12.00 14.00 17.00 Power input kW 1.15 1.56 2.06 2.54 3.48 COP 11.64 - 6.17 1320 - 5.77 13.82 - 5.82 15.20 - 5.98 14.86 - 4.89 Condintion 2: (A80T, RH63% / W80°F) Heating capacity Btu/h 21,150 29,002 38,560 44,700 55,910 kW 6.20 8.50 11.30 15.10 15.80 Power Input kW 1.11 1.45 2.01 2.49 3.66 COP 11.56 - 5.59 12.65 - 5.86 15.12 - 5.62 14.82 - 5.26 14.66 - 4.52 Condintion 3: (A50°F, RH63% / W80°F) Heating capacity Btu/h 17,910 22,178 35,440 40,430 46,740 kW 5.25 6.50 9.80 11.85 15.70 Power Input kW 1.42 1.72 2.39 3.09 3.65 COP Z93 - 3.69 7.74 - 3.78 7.81 - 4.10 8.02 - 3.83 7.98 - 3.75 Running tomporatu*o rango -25℃-43℃ -13.0°F - 109.4°F Refrigerant R32 Compressor Brand GMCC Type DC inverter Air side heat-exchanger Hydrophilic aluminum & Inner groove copper tube Fan motor BLOC motor and acial fan Throttling type EXV Water side heat-exchanger Twisted titanium heat-exchanger, Titanium tube with PVC casing Sound pressure leva! dB(A) 24-47 24-47 26-48 26-48 27-50 Water connection inch 1.5 Controller LCD, built-in WiFi module Waterproof grade IPX4 Unit dimension (LxDxH) mm 875x400x673 875x400x673 873x400x673 992x425x678 992x425x678 inch 34-5/8x15-3/4x26-1/2 34-3/8x15-3/4x26-1/2 34-3/8x15-3/4x26-1/2 29-1/16x16-3/4x26-3/4 29-1/16x16-3/4x26-3/4 Net weight kg 45.0 46.0 48.0 56.0 58.0 lbs 99 101 106 123 128 Model WA-21 WA-23 WA-25 WA-52 Power supply _ 220-240WC/1Ph/60Hz Condintion 1: (A80°F, RH80% / W80*F) Heating Btu/h 71,650 78,476 85,500 109,184 capacity kW 21.00 23.00 25.00 32.00 Power input kW 3.30 4.79 4.96 6.52 COP 14.65 - 6.36 15.03 - 4.80 14.86 -5.04 14.26 - 5.06 Condintion 2: (A80°F, RH63% / W80*F) Heating capacity Btu/h 68,900 76,770 81.200 102.360 kW 20.20 22.50 23.8 30 Power input kW 4.28 4.74 5.12 6.25 COP 14.53 - 4.72 14.58 ・ 4.75 14.21 - 4.65 13.51 - 4.80 Condintion 3: (A50*F, RH65% / W80*F) Heating capacity Btu/h 53,230 58,004 65,170 75,064 kW 15.60 17.00 19.10 22.00 Power input kW 4.00 4.70 4.92 6.52 COP 7.86 - 3.90 7.96 - 3.62 7.85 - 3.88 732 - 3.37 Running temperature range -25°C - 43°C 1-15.0℉ -109.4℉ Refrigerant _ R32 Compressor Brand GMCC Type DC inverter Air side heat-exchanger Hydrophilic aluminum & Inner groove copper tube Fan motor BLDC motor and axial fan Throttling type EXV Water side heat-exchanger Twisted titanium heat-exchanger. Titanium tube with PVC casing Sound pressure level dB(A) 27-52 28-53 28-53 33-60 Water connection ! inch 1.5 1.5 (2.0. customized) Controller LCD. built-in WiFi inodule Waterproof grade IPX4 Unit dimension (LxD«H) mm 1,091x480x730 1.091x480x730 1,091x480x730 1,195x485*855 inch 42-15/16x18-7/8*28-5/4 42-15/16x18-7/8x28-3/4 42-15/16x18-7/8x28-3/4 47-1/16x19-1/8x32-7/8 Net weight kg 79.0 79.5 80.0 97.5 lbs 174 175 176 215
