Split ATW Heat Pump
Enjoy a comfortable life all year around
Weight
Inventory
隐藏域元素占位
- Feature
- Specification
-
What makes PAT Heat Pump so outstanding?
Since PAT was established, We have been focusing on the heat pump industry and always attaching importance to technological accumulation in this filed. So far, we have built up an excellent and experienced technical team with strengths in electric control and structure design.
- Large reduction in energy consumption
- Completely environmentally friendly
- Designed for easy of installation, servicing and repair
- Smart controller design
- DHW up to 65ºC with heat pump operation
- Maximum heating temperature 65°C
- Compliant with CE directives, ERP A+++ @ 35°C and A++ @ 55°C
STRICTLY QUALITY CONTROL
We are strictly control the quality in every detail from the process of original design and development to mass production.The built in unit parts such as water pump, compressor , valves, fan motor and other related components are reliable and stable.

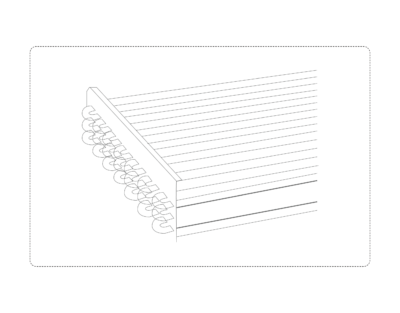

FIN-COIL HEAT EXCHANGER
The plate-type hydrophilic aluminum foil is used for air-side heat exchange, which is easy to drain and largely prevents frosting. Gloden fin increases corrosion resistance and antibacterial .

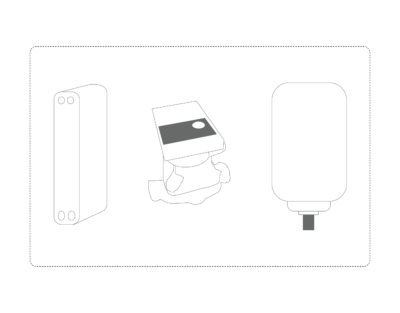

RELIABLE KEY COMPONENTS
Split hydronic modular with DC water pump and backup electric heater, from famous manufacturer.

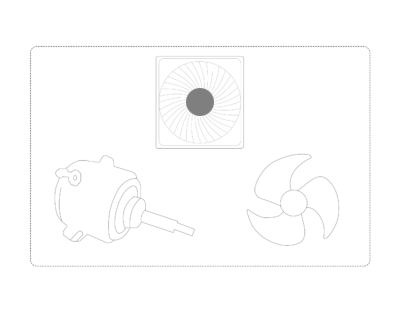

HIGH EFFICIENT DC FAN MOTOR
BLDC fan motor with stepless control helps to meet heating and cooling demands with low noise, quiet operation, as well as low power consumption.
TWIN ROTARY DC INVERTER COMPRESSOR
The newly designed twin rotary DC inverter compressor with permanent magnet brings low working noise, wide working frequency and procesion control.

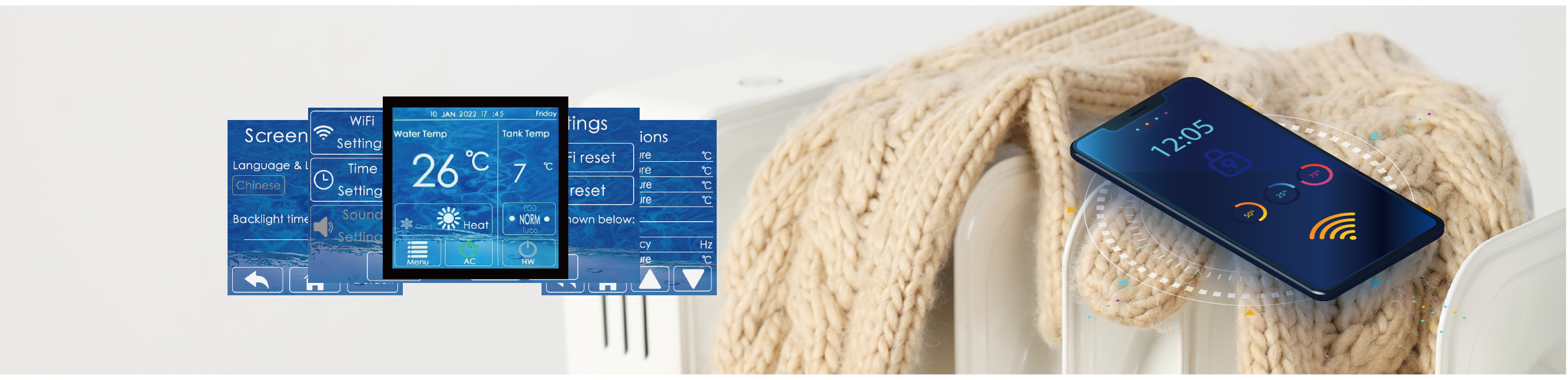

Intelligent Control
- Intuitive UI, Full-color and Touch-screen wired controller Modbus protocol and network flexibility
- Access to wifi with internet control
- Multiple languages are available
- Can set the parameters and query for faults
- Daily schedule and weekly schedule accurately control time and operation mode

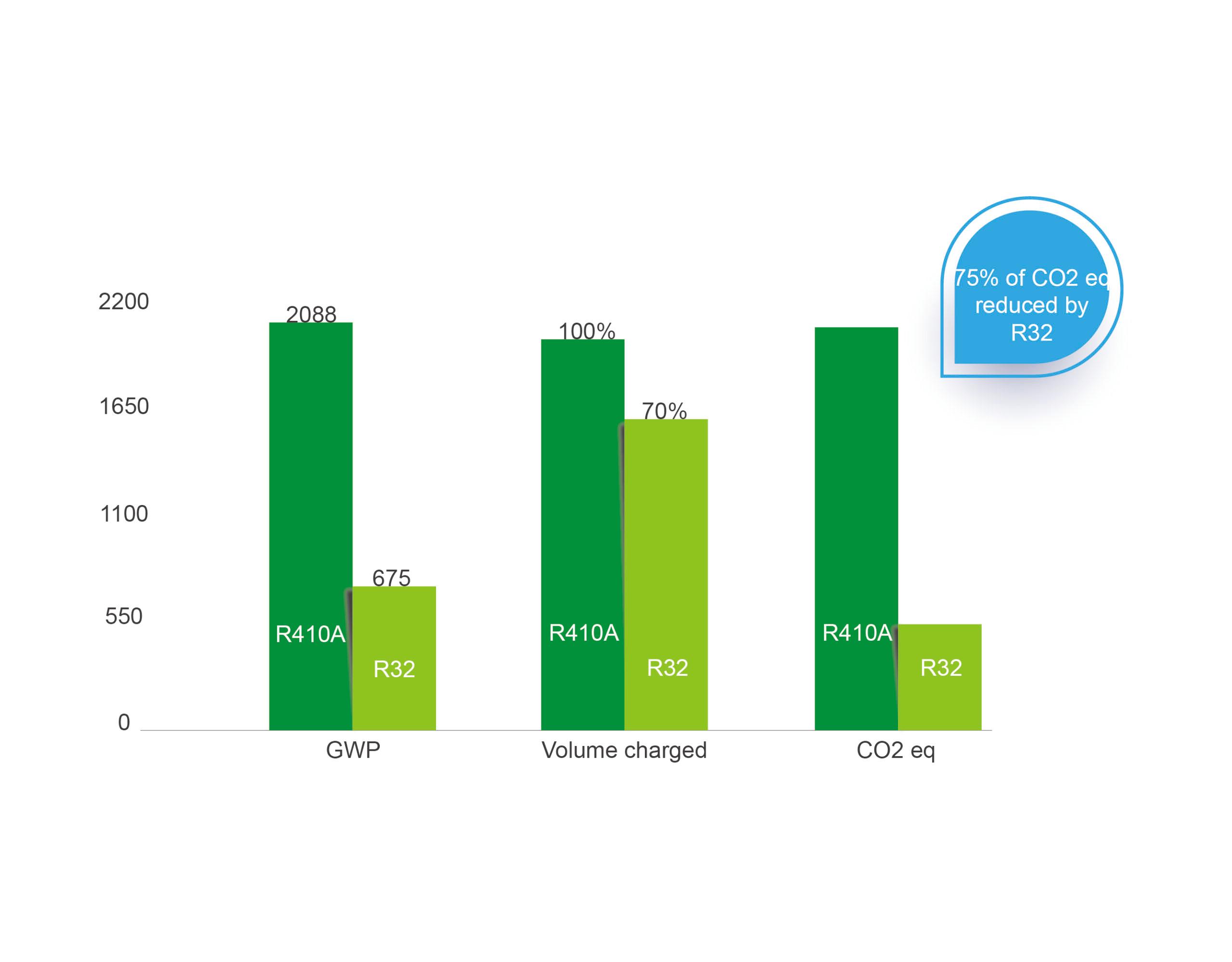

Why R32 refrigerant?
R32 doesn’t just have a lower GWP, it’s easier to reuse and recycle, it has zero ozone depletion potential and requires less refrigerant volume per kW. It shows higher efficiency while featuring a low toxicity. The refrigerant has a low flammability factor, making it highly difficult to ignite. Overall, the benefits of R32 are numerous while the downsides are almost non-existent.
- Higher heat tranfer coefficient and better performance;
- Less charged volume is needed in the system;
- Less costs and easier to get R32;
- Lower GWP and carbon emission (GWP: Global Warming Potential).
-
Split ATW Heat Pump
Model PT-08FWEN8 PT-10FWEN8 PT-12FWEN8 PT-14FWEN8 PT-16FWEN8 Power supply(V/Ph/Hz) 220-240/1/50 380-415/3/50 - 220-240/1/ 50 Heating A7W35 Capacity W 8400 10000 12000 14100 16000 Rated input W 1732 2237 2479 3065 3604 COP 4.850 4.47 4.84 4.60 4.440 Heating A7W45 Capacity W 8200 10000 12500 14500 16200 Rated input W 2247 2857 3378 4017 4696 COP 3.650 3.500 3.700 3.610 3.450 Cooling A35W18 Capacity W 8400 10000 12500 14000 15000 Rated input W 1806 2326 2907 3390 3886 COP 4.650 4.300 4.300 4.130 3.860 Cooling A35W7 Capacity W 7500 9000 11800 12500 13200 Rated input W 2419 3103 4069 4386 4800 COP 3.100 2.760 2.900 2.850 2.750 SCOP Water outlet at 35⁰C A+++ A+++ A+++ A+++ A+++ Water outlet at 55⁰C A++ A++ A++ A++ A++ Compressor Type DC twin rotary / GMCC Fan Type DC motor Number 1 Air side heat exchanger Type Fin coil Throttle Type Electronic expansion valve Refrigerant Type R32 Charged volume kg 1.25 1.25 1.80 1.80 1.80 Water side heat exchanger Type Plate Rated water flow m3/h 1.445 1.720 2.064 2.425 2.752 Water flow range m3/h 0.40~1.65 0.40~2.10 0.70~2.50 0.70~2.75 0.70~3.00 Water pump Type DC Expansion vessel Volume L 8 Safety valve MPa 0.3 Flow switch m3/h 0.36 Water side connection G5/4″BSP Unit/Packing dimension (W×H×D), outdoor unit mm 1000*865*450 / 1100*990*520 Unit/Packing dimension (W×H×D), hydraulic kit mm 720*500*340 / 855*605*424 Net/Gross weight, outdoor unit kg 65 / 81 78 / 94 Net/Gross weight, hydraulic kit kg 49 / 54 Ambient temperature range Cooling ⁰C -5～43 Heating ⁰C -25～35 DHW ⁰C -25～43 Water setting temperature range Cooling ⁰C 5~25 Heating ⁰C 25~65 DHW ⁰C 20~60
